Parker frequency converters provide reliable and economical solutions for every-day motor control applications requiring speed and torque control within the power range of 0,2...75kW. The AC10 and AC30 ranges meet the highest technical requirements such as output frequency is up to 650Hz, sensorless verctor control mode, 150% overload capacity for 1 minute, etc. Basic frames have an IP protection of IP20 but as an option frequency converters can be delivered with IP66 too.

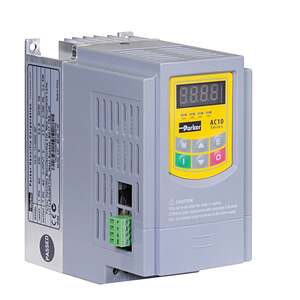

AC10 freqency converters | DATASHEET |
Power supply | 220...240VAC single phase ; 220...240VAC 3 phase; 380...480VAC 3 phase |
Power | 0,2...15kW |
Temperature range | 0...40C |
Protection | IP 20 |
Analoge inputs | 2*(0...10V; 0...5V; 0...20mA; 4...20mA) |
Digital inputs | 5*24VDC |
Digital outputs | 1*24VDC |
Relay output | 1*5A |

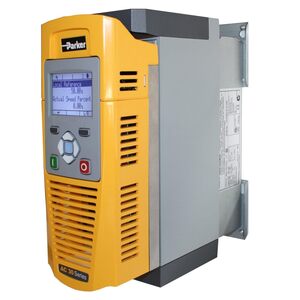

AC30 freqency converters | DATASHEET |
Power supply | 400...480VAC 3 phase |
Power range | 1,1kW...75kW |
Temperature range | 0...40C |
Analog inputs | 1...+/-10V; 0...20mA |
Analóg outputs | (1...10V or 0...20mA); (1...+/-10V) |
Digital inputs | three 24VDC |
Relay outputs: 2 | 230V 3A max. |
Protection | IP 20 |
